The HCPL-315J-500E is a high-speed logic gate optocoupler manufactured by Broadcom (formerly Avago Technologies), widely used in industrial motor drives, power inverters, and IGBT/MOSFET gate drive circuits. As one of the most trusted optocouplers in the HCPL-3xx family, it plays a critical role in providing electrical isolation between low-voltage control circuitry and high-voltage power stages.
In this article, we’ll take a detailed look at the HCPL-315J-500E — its features, pin configuration, working principle, typical applications, and how to find a reliable source when this component becomes scarce in the market.
1. What Is the HCPL-315J-500E?

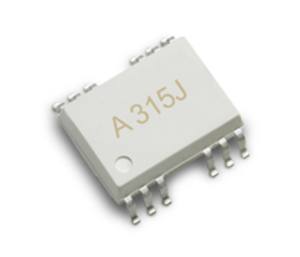

The HCPL-315J-500E is an optically coupled gate drive interface designed for driving power IGBTs and MOSFETs. It features a GaAsP LED on the input side optically coupled to an integrated photodetector and high-speed output stage on the output side.
This design provides up to 1500 Vrms isolation, which is essential for protecting sensitive microcontrollers from dangerous voltage spikes that occur during high-power switching events. The device is housed in a compact SOP (Small Outline Package), making it suitable for surface-mount production lines.
2. Key Features and Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Broadcom |
| Package | SOP-8 (DIP-8 available in other variants) |
| Output Current | 0.6 A peak |
| Propagation Delay | 0.5 µs typical |
| Isolation Voltage | 1500 Vrms (1 minute) |
| Supply Voltage (VCC) | 15–30 V |
| Operating Temperature | −40°C to +100°C |
| Rise/Fall Time | 0.1 µs typical |
The HCPL-315J-500E stands out for its fast propagation delay and symmetrical rise/fall times, which minimize switching losses in power conversion circuits. The wide operating temperature range also makes it suitable for harsh industrial and automotive environments.
3. Pin Configuration
The HCPL-315J-500E has 8 pins:
| Pin | Name | Function |
|---|---|---|
| 1 | Anode | LED input (positive) |
| 2 | Cathode | LED input (negative) |
| 3 | NC | No connection |
| 4 | NC | No connection |
| 5 | VEE | Output ground |
| 6 | VO | Gate drive output |
| 7 | VCC | Output supply voltage |
| 8 | NC | No connection |
Pins 1 and 2 form the input side, where a control signal from a microcontroller or DSP drives the internal LED. Pins 5, 6, and 7 form the output side, where the optocoupler drives the gate of a power transistor.
4. How Does It Work?
The operating principle is straightforward:
When a logic HIGH signal is applied to the input LED (Pins 1–2), the LED emits infrared light. This light is detected by an internal photodiode on the output side, which triggers a high-speed output transistor stage. The output (Pin 6) then provides a gate drive signal capable of sourcing and sinking current to charge and discharge the gate capacitance of an IGBT or MOSFET.
The optical coupling ensures complete galvanic isolation between the input and output sides — meaning there is no electrical connection between the control circuit and the power circuit. This is essential for safety and noise immunity in high-voltage applications.
5. Typical Applications
The HCPL-315J-500E is commonly used in:
Industrial motor drives — Variable frequency drives (VFDs) for AC motors rely on optocoupler-based gate drivers to switch IGBT modules at high frequencies while maintaining isolation from the control board.
Solar inverters — Grid-tied and off-grid inverters use the HCPL-315J to drive IGBT or MOSFET bridges that convert DC power from solar panels into AC power.
Uninterruptible Power Supplies (UPS) — UPS systems require fast, reliable gate drive signals to switch between battery and mains power without interruption.
Welding equipment — Industrial welding machines use IGBT-based power stages driven by optocouplers like the HCPL-315J-500E for precise current control.
Electric vehicle (EV) powertrains — EV motor controllers and on-board chargers use isolated gate drivers to manage high-voltage battery-to-motor power conversion.
6. Design Considerations
When designing with the HCPL-315J-500E, engineers should pay attention to:
Bypass capacitors — Place a 0.1 µF ceramic capacitor as close as possible to pins 5 and 7 (VEE and VCC) to minimize high-frequency noise and ensure clean gate drive signals.
LED drive current — The input LED requires 10–16 mA for reliable operation. A series resistor should be calculated based on the MCU output voltage and the LED forward voltage drop (typically 1.5 V).
Dead time management — In half-bridge or full-bridge configurations, ensure adequate dead time between the high-side and low-side gate signals to prevent shoot-through. The HCPL-315J’s fast switching speed (0.5 µs propagation delay) means even small timing errors can cause problems.
Thermal derating — At elevated temperatures, the LED output degrades over time. Design with sufficient current margin and consider the LED’s long-term degradation curve (typically 20% reduction after 50,000 hours at rated current).
7. HCPL-315J-500E Alternatives and Cross-References
If the HCPL-315J-500E is not available, several alternatives offer similar performance:
| Alternative Part | Manufacturer | Key Difference |
|---|---|---|
| HCPL-3150 | Broadcom | DIP-8 version of the same device |
| ACPL-332J | Broadcom | Higher isolation (5000 Vrms), newer design |
| TLP250H | Toshiba | Lower output current, wider availability |
| FOD3120 | ON Semiconductor | Pin-compatible, slightly different timing |
| ISO5852S | Texas Instruments | Capacitive isolation (no LED degradation) |
When selecting a replacement, the most critical parameters to match are: output peak current, propagation delay, isolation voltage rating, and pin-to-pin compatibility. Always verify the gate charge requirements of your IGBT/MOSFET against the alternative driver’s current capability.
8. Availability and Sourcing Challenges
The HCPL-315J-500E has experienced supply constraints in recent years due to several factors:
Broadcom’s focus has shifted toward high-margin semiconductor products, leading to limited investment in legacy optocoupler product lines. Combined with the global semiconductor shortage and extended lead times, many OEMs have found it increasingly difficult to source this component through authorized channels.
For manufacturers with existing designs that rely on the HCPL-315J-500E — particularly in industrial and military applications where redesigning around a new component would require costly requalification — finding a reliable independent distributor becomes essential.
9. Why Source from ZZX Electronics?
At ZZX Electronics, we specialize in sourcing obsolete and hard-to-find electronic components, including the HCPL-315J-500E and other members of the Broadcom HCPL optocoupler family. Here’s how we support your supply chain:
Verified inventory — We currently maintain over 10,000 pieces of HCPL-315J-500E in stock, with full traceability including date code and lot information.
Quality assurance — Every component goes through our quality inspection process. We can provide Certificates of Conformance (COC) and packing list documentation upon request.
Global sourcing network — With supplier relationships spanning Asia, North America, and Europe, we can locate hard-to-find parts even when primary distribution channels have zero stock.
Fast RFQ response — Submit a quote request and receive a response within 24 business hours, including pricing, lead time, and available quantity.
Related parts in stock — We also carry other Broadcom optocouplers including the HCPL-2631-000E, HCPL-0631, HCPL-063L, and HCPL-0630.
10. Conclusion
The HCPL-315J-500E remains a critical component in industrial power electronics, offering the speed, isolation, and reliability that gate drive applications demand. Whether you’re maintaining an existing product line or sourcing components for legacy designs, understanding this device’s capabilities and limitations helps you make better engineering and procurement decisions.
If you need the HCPL-315J-500E or any other obsolete Broadcom components, contact ZZX Electronics today for a fast, reliable quote.
ZZX Electronics is an independent electronic components distributor based in Shenzhen, China, specializing in obsolete and hard-to-find parts for the industrial, military, and aerospace sectors. Request a quote or explore our full inventory.
